5.7.3.4. The `System notifications`

5.7.3.4.1. Introduction

The notification system consists of two parts:

  • The reduced part: it is present directly in the `Health` menu

  • The full part is given in the `System notifications` screen

In both parts, the notification system:

  • Reporting alarms defined by a level of risk, among others

  • Manages them (sorting, acknowledgement...)

This screen is only accessible to members of the operator group.

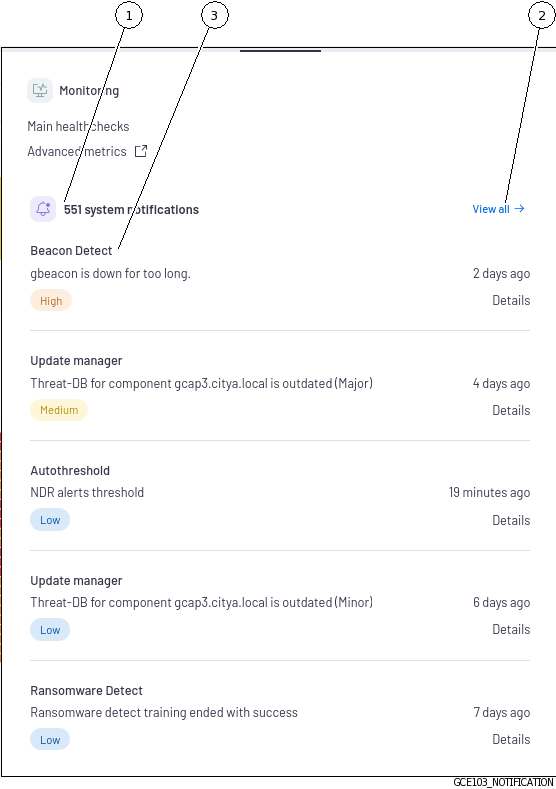

5.7.3.4.3. Part `System notifications` of the `Health` menu

../../../_images/GCE103_NOTIFICATION.PNG

For administrator group members, the following message is displayed: `Error 403:Insufficient permissions`.

Item

Description

1

Total number of unpaid notifications

2

Link `View all` : opens the `System notifications` window

3
Last notification received. This notification displays:

- A description
- A risk level (High, Medium, Low)
- The time of appearance
- A link `Details` to display the notification detail window

5.7.3.4.4. `System notifications` screen

After clicking on the link `View all` in the `Health-Monitoring` menu, the `System notifications` screen is displayed.

../../../_images/GCE103_NOTIFICATION01.PNG

For members of the operator group, the following message is displayed: `Unauthorized- You don't have the permission to view this page.`.

Item

Name

Function

1

`Notifications`

Number of notifications displayed; depends on aggregated or not (see 8)

2

Brief information on this screen.

The link `Learn more` opens the documentation integrated on the corresponding page.

3
`Risk`
Risk level of the notification

4

`Last seen`

Date and time of last appearance

5
`Component`
Notification issuer component

6
`Title`
Title of the notification

7

Search field

Search for text in categories

8

`Aggregated by name` selector

if used, aggregates the notifications. In this mode, the information fields are different (`Count` field present)

8

`Count`

Number of same notifications (displayed only in `Aggregated by name` mode)

9

`Muted` selector

If used, displays the muted notifications

11

`Action`
Displays the possible actions:
- `Unmute`
- `Mute related notifications`
- `Acknowledge related notifications`

Note

By clicking on the notification, the `Notification details` window is detailed.

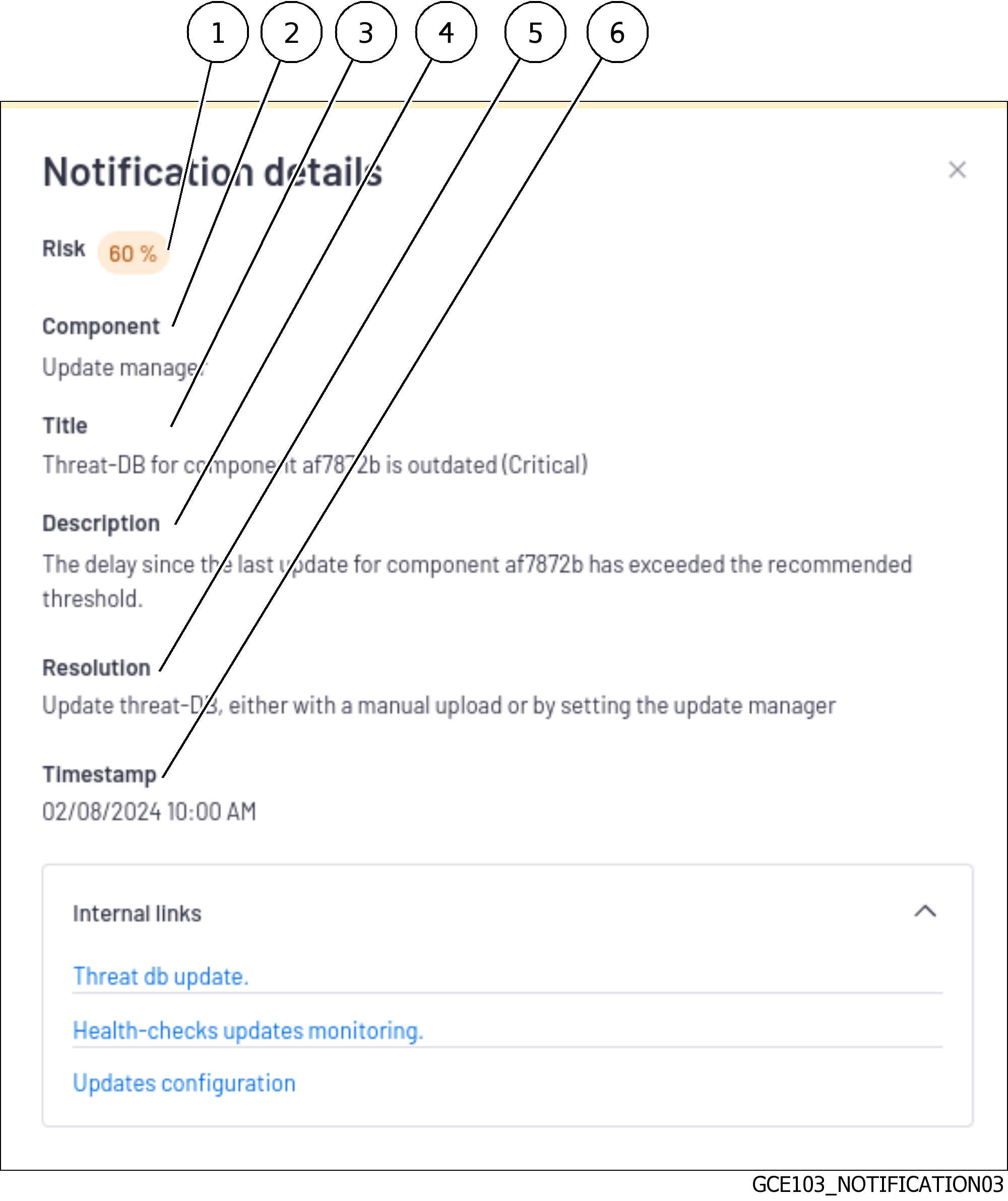

5.7.3.4.5. `Notification details` window

The `Notification details` window is displayed:

  • by clicking on the `Détails` link in the `System notifications` section of the `Health` menu

  • either by clicking on the notification in the `System notifications` screen

../../../_images/GCE103_NOTIFICATION03.PNG

Item

Name

Function

1

Risk

Risk level of the notification

2

`Component`

Notification issuer component

3

`Title`

Title of the notification

4

`Description`

Reason why the notification was created

5

`Résolution`

Advice on solving the problem

6
`Timestamp`
Date and time of notification
